2-4 Circuit Universal Triac Controller

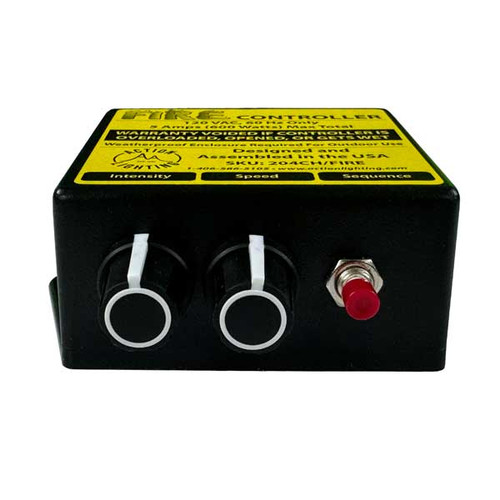

Action Lighting 2-4 Circuit Universal Triac Controller

Take control of your lighting system with the Action Lighting 2-4 Circuit Universal Triac Controller – a robust and versatile solution designed for seamless integration and precise lighting management. Engineered with precision and built to last, this controller offers unparalleled performance and reliability, making it the ideal choice for both residential and commercial applications.

Overview

The 2-4 Circuit Universal Triac Controller (UTC) with 24-265VAC capability is an advanced, versatile device designed to manage and automate various electrical circuits within residential, commercial, and industrial settings. It is equipped with cutting-edge technology that allows for precise control and monitoring of multiple circuits, enhancing efficiency and reliability in a wide range of applications. The Action Lighting 2-4 Circuit Universal Triac Controller is a state-of-the-art device enabling independent control of up to four lighting circuits. Its universal design ensures compatibility with a wide range of resistive and capacitive loads, offering exceptional flexibility and ease of installation. This controller is not merely a switch; it's a sophisticated system designed for optimizing energy efficiency, extending bulb lifespan, and enhancing the overall user experience. We've meticulously engineered this product to meet the highest industry standards, incorporating advanced features and robust construction for lasting performance.

Key Features

• Independent Circuit Control: Manage up to four circuits individually, allowing for customized lighting scenarios.
• Universal Compatibility: Works with a wide variety of resistive and capacitive loads, including incandescent, halogen, LED, and CFL bulbs (specific wattage limits apply - see specifications).
• Smooth Dimming: Experience flicker-free dimming with precise control over brightness levels.
• Easy Installation: Simple wiring diagram and clear instructions ensure straightforward installation for both DIY enthusiasts and professional electricians.
• Durable Construction: Built with high-quality materials to withstand demanding conditions and ensure long-term reliability.
• Overload Protection: Integrated safety features protect the controller and connected loads from overcurrent and overheating.
• Compact Design: Space-saving design ideal for various installation locations.
• Zero-Cross Switching: Minimizes electrical noise and extends the lifespan of connected lighting.

Detailed Specifications

• Dimensions
  • Size: 8” x 4½” x 1 7/16” (including cable glands and knobs)
  • Size: 6¾” x 4½” x 1 7/16” (just the box)
  • Cable Length: 18”
• Durability
  • Material: Powder Coated Aluminum
  • IP Rating: IP66 (Indoor / Outdoor)
  • Thermally Protected
• Electrical
  • Power Supply: 24-265 VAC
  • Maximum Current, Combined: 40 Amps
  • Maximum Current, Per Circuit: 10 Amps
• Other

  • User replaceable Triacs – no soldering required
  • Patterns: Chases, Scrolls, Wipes, Special FX (Including Fire), Dimmer, User Programmable
  • Designed and assembled with pride in the USA
  • Click here to download the wiring instructions and user manual PDF document.

Benefits

• Enhanced Energy Efficiency: Precise dimming control allows for optimized lighting levels, reducing energy consumption.
• Extended Bulb Lifespan: Smooth dimming reduces stress on bulbs, extending their operational life.
• Improved Lighting Control: Independent circuit control offers granular control over different lighting zones.
• Reduced Maintenance Costs: Durable construction and overload protection minimize the need for repairs and replacements.
• Increased Safety: Integrated safety features protect the controller and connected loads from potential damage.

Usage Scenarios

The Action Lighting 2-4 Circuit Universal Triac Controller is ideal for a wide range of applications, including:

• Residential Lighting: Control lighting in individual rooms or zones for customized ambiance.
• Commercial Lighting: Manage lighting in Amusement, retail signs, or hospitality settings.
• Industrial Lighting: Control lighting in warehouses, factories, or other industrial environments.

Compatibility

This controller is designed for broad compatibility. However, always verify the wattage and type of your lighting fixtures before installation. Refer to the detailed compatibility chart in the user manual for specific information on compatible bulb types and wattages. Improper usage may void the warranty.
